CO2 PENS

A conceptual and computer model for ensuring safe and effective containment of CO2

PREDICTING ENGINEERED NATURAL SYSTEMS

CO2-PENS is a software tool that links together physics-based process-level modules that describe the entire CO2 sequestration pathway, starting from capture at a power plant and following CO2 through pipelines to the injection site and into the reservoir. After injection, simulation of CO2 migration continues through the subsurface where it may mineralize, dissolve into brine, or react with wellbore casing or cement. CO2 may leak from the reservoir along wellbores or faults that lead back towards overlying aquifers or the surface. The model can be used to quickly screen sequestration sites or to perform a more detailed site-specific evaluation.

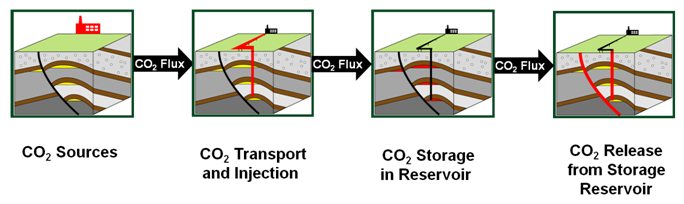

CO2Pen process diagram
Co2pensdiagram
  • CO2 Capture and Transport calculations
  • Reservoir Injectivity and Capacity calculations
  • Wellbore, Fault and Caprock leakage estimates
  • Shallow Groundwater Impacts (changes in pH and TDS)
  • Leakage to the Atmosphere
  • Screening Mode: Quick estimates using built in semi-analytical solutions
  • Site Selection Mode: Import information from detailed reservoir simulators to estimate environmental and economic impacts
  • Economic impacts

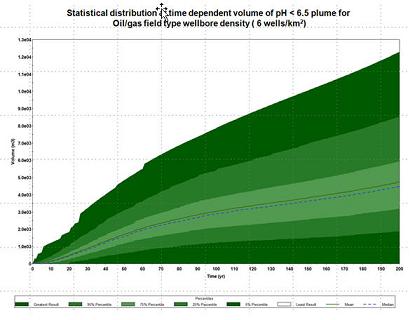

Co2pensgraph
  • Used by US National Risk Assessment Program for CO2 Sequestration studies
  • Used by Southwest and Big Sky CO2 Partnerships for performance assessment
  • Coupled to LANL code SIMCCS to evaluate CO2 emissions from Oil Shale in the Piceance basin
  • Used in conjunction with the State of Wyoming to study the CO2 Sequestration at the Rock Springs Uplift, Wyoming

Contacts

  • Rajesh Panwar
  • Email
  • Hari Viswanathan
  • Email
