Flanged Tritium Waste Containers

Questions and Answers

This question and answer list is in response to the inquiries NNSA received by email and during the second public information session held November 5, 2020.  Many new questions are addressed here, with similar questions condensed, consolidated, or paraphrased.  Duplicate questions have not been repeated, but are still available in the "Additional Questions and Answers" section that follows this one.  Our answers are intended to be fully responsive to the broader intent of every question we received.

Q. What practical steps do you recommend residents consider during active venting (e.g., staying indoors, closing windows/vents, limiting outdoor activity for children, elders, pregnant people)?

We don’t have any recommendations for modifying activities as we do not anticipate any offsite impact.

Q. Should people avoid collecting rainwater, irrigating, or harvesting produce during/just after venting? If so, for how long?

No, we do not anticipate any offsite impact.

Q. Are masks (e.g., N95/KN95) helpful for reducing inhalation risk of tritiated water vapor? Any guidance for indoor air (filters/HVAC settings)?

No, we do not anticipate any offsite impact from these operations.

Q. Any special guidance for vulnerable groups (infants, pregnant people, those with respiratory illness), farmworkers, and people who rely on acequias or private wells? Should nearby farmers try to harvest foods beforehand?

No, we do not anticipate any offsite impact from these operations.

Q. What are the specific weather thresholds (wind/rain/humidity) that will trigger postponement or pause of venting? How and when are those decisions made each day?

We’ve established specific emission limits based on bounding weather conditions. Each day, LANL meteorologists will ensure the day’s forecast is within those evaluated bounding conditions. The only condition that would postpone operations would be if the forecast is outside our evaluated condition or if lighting or other weather conditions make the work unsafe at Area G. Decisions are made each morning prior to operations.

Q. What real-time monitoring will be in place during venting, and what will the public be able to see in near-real time (e.g., dashboard, map, time-stamped readings)?

Emissions will be monitored in real time by LANL and EPA personnel to ensure release limits are not exceeded. Daily summaries will be generated addressing operations, emissions, and any offsite radiological dose. Those daily summaries will be published in the Electronic Public Reading Room as soon as practical, taking into consideration requirements for public release.

Q. In the event of an unanticipated release or incident, what are the exact steps and timelines for public notification?

o  Channels: Wireless Emergency Alerts, Reverse-911, radio/TV, social media, email lists, door-to-door for nearby residents, coordination with Pueblos and counties.

o Time standard: Within how many minutes will alerts be issued to the public?

LANL Emergency Operations Support Center will be monitoring the operation and if necessary, will follow the standard process for notifications for any LANL event that might have an offsite consequence. An Everbridge message would be emailed to the affected offsite agency with the Emergency Notification Form (ERO-FORM-009) attached. Soon after, an EOSC operator would call the affected agency to confirm they have received the form detailing the Protective Action Recommendation. Our operators log who they talked to verify they received the form.

Even a worst-case release would not require any protective action by any member of the public.

Q. What protective actions should the public take if an incident occurs (shelter-in-place, avoid water contact, etc.)?

Even a worst-case release would not require any protective action by any member of the public. We do not anticipate any off-site impact.

Q. What hotlines/points of contact should residents call for health questions or to report issues (NMDOH nurse line, county EM, LANL info line)? Please include Spanish contact options.

We cannot advise on health-related questions, but we do not anticipate any off-site impact.

Q. Where can residents find a single landing page for updates, daily status, and after-action information (in English and Spanish)?

Please see LANL’s public-facing website on the flanged tritium waste containers. The Electronic Public Reading Room also will have daily summaries addressing operations, emissions, and any offsite radiological dose. Those daily summaries will be published as soon as practical.

Q. For the post-activity public meeting required by NMED, please provide: date/time window, virtual access details, how comments will be received/responded to, and when the recording and comment-response table will be posted.

We’ll alert the public to details of this public meeting as soon as the date and time is available.

Q. Will guidance and alerts be provided in Spanish and Tribal languages as requested? If yes, please share the plan for translation and distribution.

Standard emergency response procedures, as detailed above, will be followed in the event of an incident.

Q. What methods of communication will be used in the case of any problems during the treatment process that result in an unanticipated release of tritium exceeding the conditions of [the] temporary authorization?

LANL Emergency Operations Support Center will be monitoring the operation and if necessary, will follow the standard process for notifications for any LANL event that might have an offsite consequence. An Everbridge message would be emailed to the affected offsite agency with the Emergency Notification Form (ERO-FORM-009) attached. Soon after, an EOSC operator would call the affected agency to confirm they have received the form detailing the Protective Action Recommendation. Our operators log who they talked to verify they received the form.

Q. What is the geographic area/radius of the public that will be notified in the case of any problems during the treatment process that result in an unanticipated release of tritium exceeding the conditions of [the] temporary authorization?

The 30-mile radius outside LANL would be the first notification area.

Q. What methods of communication were used to notify the public and Tribal communities three days prior to commencing operations?

Multiple communication channels were used to notify the public and tribes, including a public notice, direct tribal communications and a public meeting.

Q. What is the geographic area/radius of the public and Tribal communities that were notified three days prior to commencing operations?

The public notice made three days prior to commencing operations was distributed via LANL’s Electronic Public Reading Room, which is available to everyone in the public. All tribes within a 30-mile radius also were notified.

Q. Can you vent without the NMED Temporary Authorization?

No.

Q. Where is this activity addressed in the Consent Order?

The FTWCs are not addressed in the Consent Order, as they are not categorized as legacy waste. They are located at Technical Area 54's (TA-54) Area G, and their removal is necessary to support larger waste reduction goals.

Q. Will you vent four days in a row?

The operation to mitigate the pressure in the four FTWCs is planned for two days per container, for a total of eight days. Those days may not be consecutive to allow for contingencies such as other operations and inclement weather.

Q. How is the higher risk tritium in oxide or vapor form (HTO) being mitigated?

The molecular sieve material in the capture system of the FTWCs is specifically engineered to capture HTO.

Q. What are the cumulative impacts from this release?

There are no cumulative impacts from this operation. All limits are conservative, and well within regulatory limits that are protective of the public.

Q. What alternatives have been considered for this operation?

Numerous alternatives were considered in the design of this project, with an overview of those alternatives discussed in the public information sessions and the first question and answer document posted on the LANL Website and the Electronic Public Reading Room.  Permanent disposition of this waste supports waste and risk reduction priorities for the DOE and regional stakeholders.  Disposition alternatives and strategies considered included leave in place, transportation without pressure mitigation, and pressure mitigation before transportation.

Additional strategies considered included placing the containers in a secondary and tertiary containment, and numerous pressure mitigation and capture strategies.  The selected option, while more complex and expensive than many alternatives, was deemed to be the safest option for both the workers and the public.  All aspects of the design are engineered to maximize safety, capture efficiency, and minimize additional waste generation.

Q. Have you analyzed the specific impacts to communities in the area?

We have evaluated potential doses for this operation, and all LANL operations, at a variety of locations in and around LANL, including Santa Clara Pueblo and San Ildefonso Pueblo. Radiological dose consequence at these areas is less than one-tenth of the dose that would be received by the hypothetical maximally exposed individual (MEI) in White Rock.  Limits calculated for the White Rock MEI will therefore be protective of all population centers.

Q. How can you say that site limits cannot be exceeded?

Only one container at a time will be vented, and the inventory of a single container, even with 100% of the headspace gas released, would not exceed the permit limits.  Additionally, real time monitoring is in place to monitor the operation, and the process can be paused and placed in a safe configuration at any time as needed.

Q. What is the EPA’s role in this project? The NMED?

EPA Region 6 approves the air emissions permit request for this project, and the NMED approves the treatment process as these containers are Resource Conservation and Recovery Act (RCRA)-regulated waste.  LANL also uses the EPA’s Clean Air Act Assessment Package - 1988 (CAP-88) emissions models.  This operation would require the same permits and approvals, regardless of the specific design of the process, anticipated release quantities, and timing of the operation.

Q. What is the effectiveness of the capture system?

Effectiveness of the capture system can vary by container contents, pressure release rates, and temperatures.  The project’s goal is to perform the operation in a manner that maximizes capture effectiveness and keeps any potential release as low as reasonably achievable.  The real time monitoring system ensures these goals are met.

Q. We’ve heard three numbers for potential dose: 20 mrem, 10 mrem, and 8 mrem. Can you explain?

The permitting process requires analysis of the worst-case scenario.  For this project, that would be a 100% release of the contents of all four containers (approximately 114,000 curies) with no mitigation or capture.  That is not a realistic or possible scenario, since the operation is designed to only vent the hydrogen, oxygen, and small quantities of tritium in the headspace of each container, a very small fraction of the total contents, and only one container at a time.  In this worst-case, bounding scenario, the Maximally Exposed Individual (MEI), under the least favorable meteorological conditions, could receive 20 mrem.  As previously stated, this is not a likely scenario, and only used for a worst-case bounding criteria.

The site release limit for all airborne radionuclides, combined from all LANL operations, is 10 mrem per year to any Maximally Exposed Individual member of the public.

This specific project has set a limit of 8 mrem for the entire operation at the site boundary for the MEI.  However, the project’s goal is to limit any release to the lowest possible quantity to achieve a safe configuration for transport.  The desired and likely offsite dose for this project will be extremely low – below the 8 mrem, possibly even 0 mrem, at the site boundary.

Q. What will the Laboratory do if the site limit is exceeded?

In the very unlikely event that the site limit is exceeded, LANL would make the required formal notifications to all regulators, and follow the established processes defined in state and federal regulations.

Q. What is the difference between Triad and N3B?

Triad is the management and operations (M&O) contractor for the NNSA and operates the majority of LANL operations.  N3B is the legacy cleanup contractor for DOE EM and manages operations at TA-54 Area G, where the four FTWCs are located.  This project is a joint operation, with collaboration between the two DOE entities (NNSA and DOE EM) and the two contractors, Triad and N3B.  Triad is responsible for the operation, and N3B manages the site where the FTWCs are located.

Q. Have you performed “puff” modeling?

An evaluation of the CALPUFF code in comparison with our standard CAP-88 code completed in 2002 showed that CAP-88 is conservative for distances over 300 meters from the source.  At the distances applicable for this project – 2100 meters or more – the use of CAP-88 will be a conservative estimate of radiological dose.

Q. Is LANL considering plant, animal, and soil impacts?

LANL’s annual Biota Dose Assessment includes this evaluation, and is published in the Annual Site Environmental Report (ASER).

Q. What is the urgency for this project? Is there a financial incentive or bonus for completing the project by a certain time?

There is currently a window of time in which safe and compliant controlled pressure release can be performed. Once that time passes – likely in less than two years – any effort to move or mitigate the containers becomes much more difficult and introduces new risks, including possible curtailment of Area G cleanup efforts. There is no financial incentive tied to the disposition of these containers.

Q. How are these FTWCs different from WIPP drums?
These four containers hold different constituents. They are not transuranic waste, which is the type of waste that is stored at WIPP.

Q. How will you make data and results available to the public in real time, that is, as soon as you have final results?

Emissions results from the operation will be posted in the Electronic Public Reading Room (ePRR) and the ASER.  Additionally, an EPA representative will attend the operation.  Results will be published in a timely manner in accordance with federal reporting processes.

Additional Questions and Answers

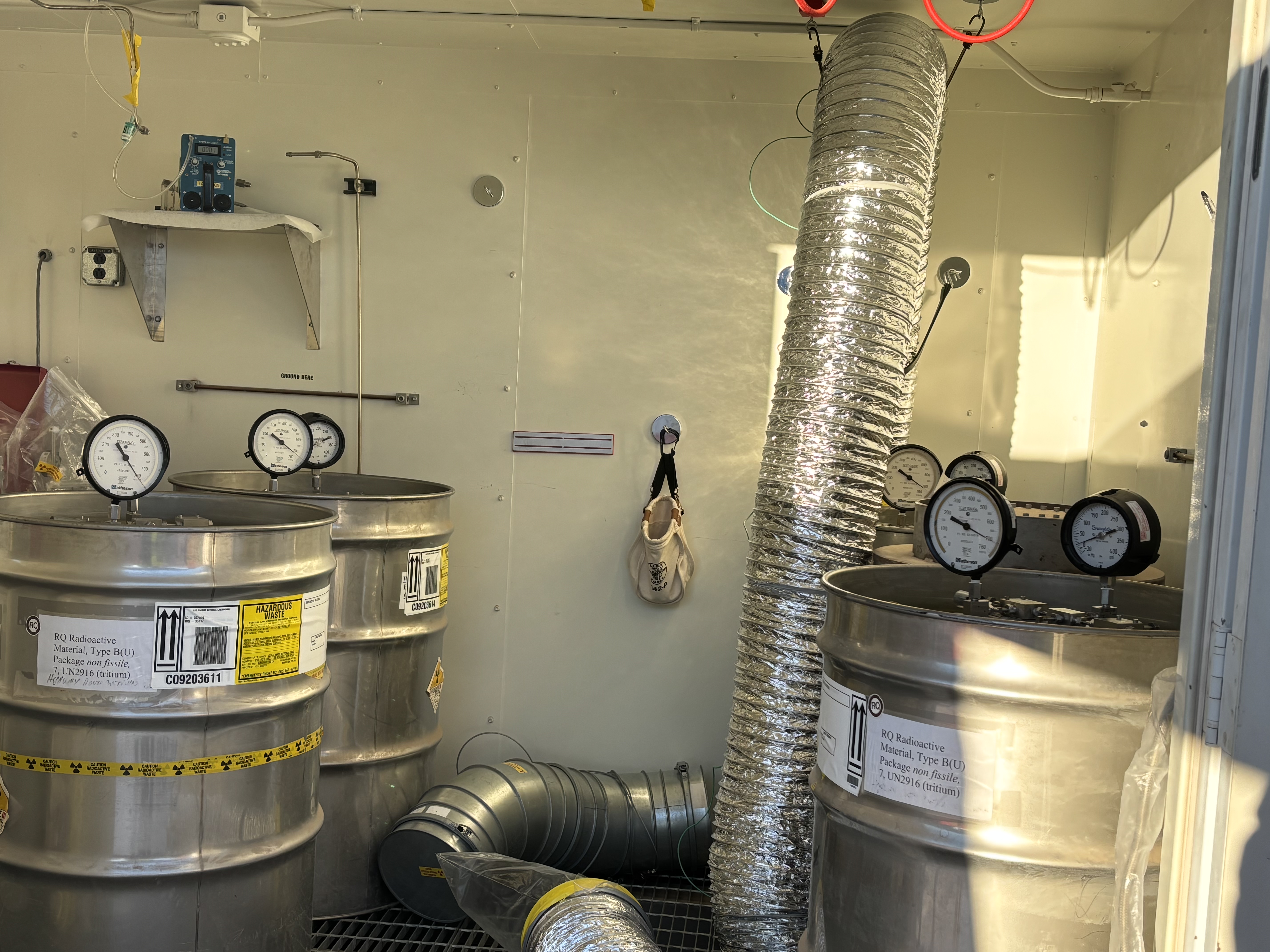

Q. What is a Flanged Tritium Waste Container and why do you need them?

The main objective of radioactive waste management is to protect workers, public and the environment from the potential harmful effects of radioactive waste and to minimize the burden for future generations. An important task for waste management is to translate general waste acceptance requirements into detailed waste package specifications. Flanged Tritium Waste Containers (FTWCs) are specifically designed to provide radiation shielding and/or physical containment to restrict or prevent the spread of contamination as an engineered component for ensuring the safe management of radioactive waste.

Q. What is tritium and what is it used for?

Tritium is a radioactive form of hydrogen gas and an important component in nuclear weapons.

Q. Why are these drums at Area G?

These FTWCs were packaged at LANL’s Weapons Engineering Tritium Facility (WETF) in 2007 and sent to Area G for permanent disposal.

During an audit of containers, NNSA identified a small amount of lead in the materials inside the FTWCs, resulting in the containers being designated as hazardous waste under the Resource Conservation and Recovery Act (RCRA) and requiring offsite disposal. Further analysis identified the potential for a flammable, pressurized mixture of hydrogen and oxygen in the FTWC headspace, requiring venting of headspace gases to enable personnel to safely move the containers.

Q. Why is venting necessary?

The Laboratory has a goal of reducing the volume of waste on site. As part of this effort, the four FTWCs were identified for treatment on site and eventual shipment to a licensed off-site facility. Before the containers are moved to WETF, pressure built up inside must be relieved. Once the pressure is relieved, the containers will be transported to WETF for further treatment prior to shipment to a licensed off-site facility.

Q. Why are you doing this now?

NNSA is conducting these activities to support safe operations at LANL, including mitigating risks to the public and the environment, and to enable the disposition of radiological and hazardous waste as required by our permits and DOE Orders. These operations are being conducted in compliance with all applicable regulatory requirements.

Q. When do you plan to vent the containers?

Venting of the drums was previously postponed indefinitely due to impacts of the COVID-19 pandemic.  NNSA and Triad are working with regulatory agencies to determine a revised schedule.

The operation will be conducted with the utmost considerations for safety to Laboratory employees, the public and the environment.

Q. Is there any danger to public health and safety?

No. Our engineers have a proven safe and effective method to vent the FTWCs under carefully controlled conditions. Additionally, only one container at a time will be vented, and the venting process will undergo real-time monitoring to ensure DOE and Environmental Protection Agency (EPA) requirements on radioactive dose limit are not exceeded. The operation will be conducted with the utmost considerations for safety to Laboratory employees, the public and the environment.

Q. How do you know venting is safe?

Laboratory engineers have done a careful analysis of the venting process to ensure that the release is controlled. The process has been tested at WETF and proven effective. This methodology has been evaluated and observed by representatives from the EPA who will be monitoring the effort. Additionally, strict limits have been placed on the amount of tritium that can be released and we will be monitoring closely to ensure those limits are not exceeded.

Throughout the process, Laboratory engineers will carefully monitor the amounts of tritium released. We have also developed a system to capture much of the gas while it is being released. Strict regulatory limits prevent releasing more than the amount allowed for each individual container. These precautions are designed to prevent any off-site health impacts.

Q. How many FTWCs will be vented?

There are four containers.

Q. What is the process?

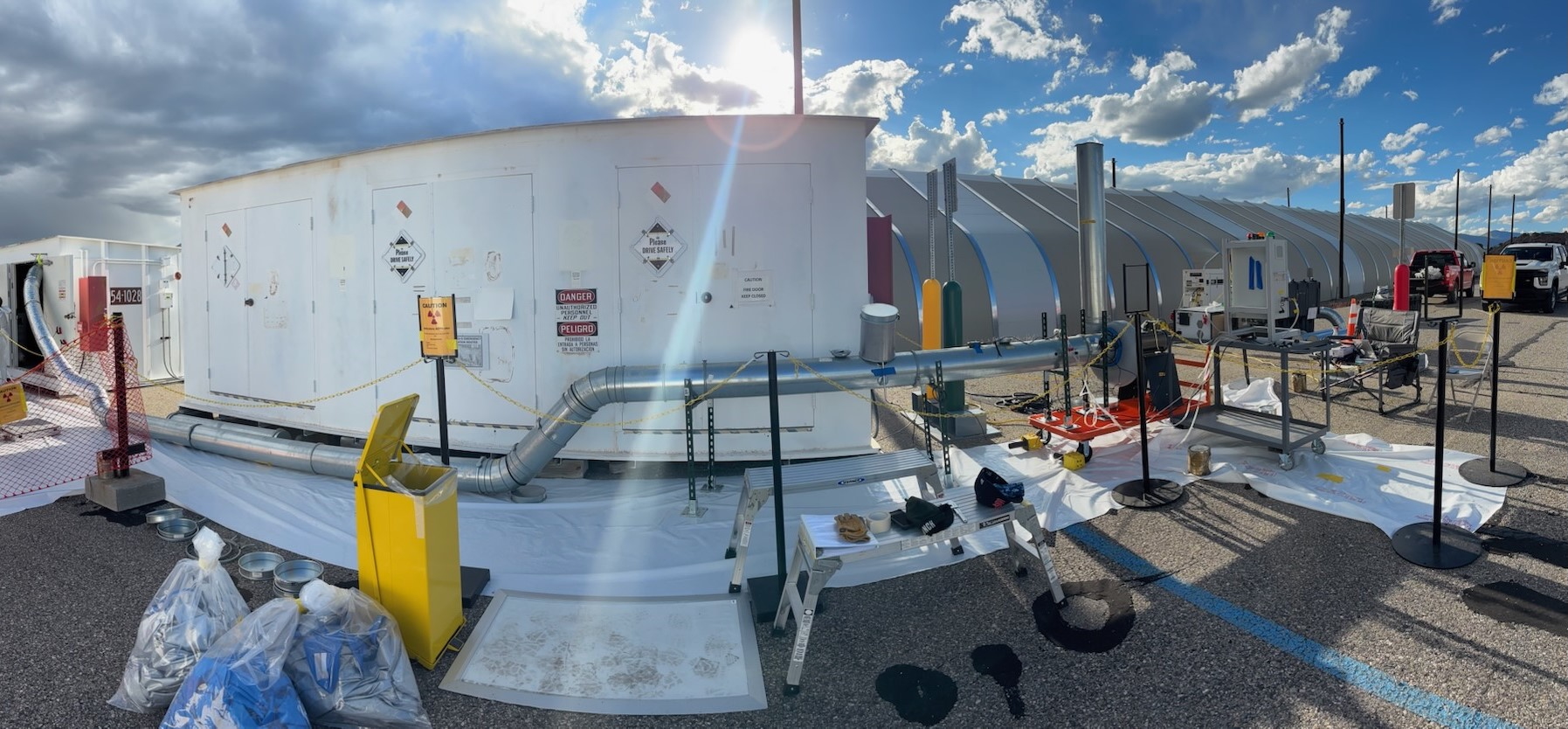

Each of the four containers will be vented separately, one at a time, at TA-54's Area G. The venting process will allow the vast majority of the tritium to be captured through a dedicated filtering system designed for tritium capture. We also have a real-time monitoring system integrated into the exhaust and emission system.

Q. Are there other ways to treat this waste that does not involve releases to the atmosphere?

No. NNSA has been working with the regulators to determine the safest method to enable movement of these containers from TA-54 to WETF for further treatment and shipment to a licensed off-site disposal facility. WETF has all the appropriate infrastructure to safely manage tritium.

Q. Why not do the venting at WETF instead of Area G?

The purpose for the venting is to enable us to safely move the drums from Area G to WETF, where we have the appropriate infrastructure to further treat and safely manage tritium.

Q. What is the distance between Bldg. 1028 at TA-54, where the containers are stored, and the nearest resident in White Rock?

It is 2200 meters from Bldg. 1028 to the closest business or residence location in White Rock; about 1.3 miles.

Q. How are emissions monitored and evaluated?

To predict the off-site dose consequences from these releases, we are using worst-case computer models to establish daily emissions limits. At the end of each day of operation, we recalculate this dose consequence using actual wind from that day. The process then repeats, using worst case modeling to ensure no limits are ever exceeded. This ensures the protection of our personnel, the public, and the environment.

Q. Where are the relevant White Rock air monitors?

We have four monitors in White Rock: at the bottom of Pajarito Road, at the old White Rock Fire Station (Rover & NM-4), at “Rocket Park,” and near Pajarito Acres (Monte Rey South & NM-4). These all measure airborne radioactive particulates and tritium oxide. The data will be available in our annual emissions report to the EPA and in our ASER.

We have real-time monitoring to prevent a release from exceeding established limits.

Q. Can you confirm that the highest dose possible off-site is estimated at 20 millirem?

Yes. For EPA planning purposes, we modeled the entire contents of the four FTWCs released to the air, using average wind conditions and no filtering system. This resulted in the 20 millirem off-site dose. In reality, we will not be venting the entire contents – just that fraction which is in the headspace of the four containers. The operations will take place in a slow, controlled manner, using filtration to remove as much tritium as possible.

NNSA will monitor the releases to ensure we stay well below the EPA limit of 10 mrem per year. We will not conduct operations in adverse wind conditions.

NNSA has developed plans to ensure that the 10 mrem level will not be reached by using emissions controls (filters) on the exhaust system and actively monitoring the emissions in real-time. Operations will not occur if the wind speed and direction are unfavorable.

Note: Background radiation dose in this part of Northern New Mexico is about 1 mrem per day or more – about 350-400 mrem per year. The EPA and the Clean Air Act allow DOE facilities to emit radioactive material that could contribute up to 10 mrem per year above this background level. LANL’s emissions for the past several years have been a fraction of 1 mrem per year. For comparison, a cross-country round-trip airplane flight results in about 3.7 mrem of radiation exposure.

Q. What agencies are overseeing this process?

The EPA for radiological air quality emissions, the NMED for RCRA treatment, and federal regulators from the DOE for radiological emissions.

Q. What happens to the four FTWCs when the venting is complete?

They will be safely transported to another location on-site at LANL where the contents will be repackaged into Department of Transportation-compliant containers and then shipped offsite to a licensed storage facility.
